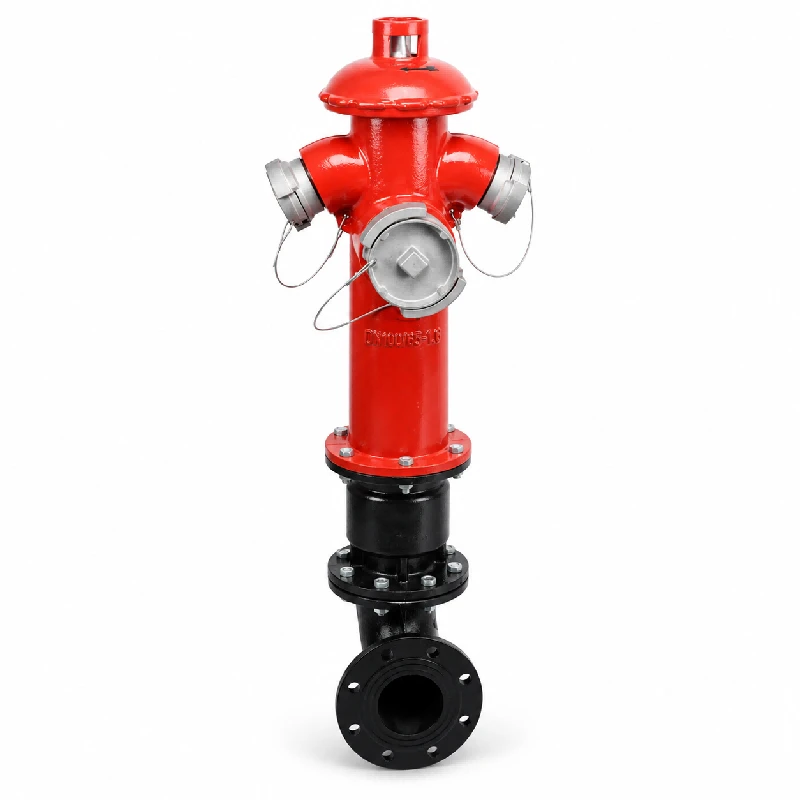

French Type Above Ground Fire Hydrant
DN65 hose outlet designed for French-style fire hose connections.
1.6 MPa nominal pressure for outdoor fire protection applications.
Main body made of QT450-10 ductile iron for mechanical strength and durability.
Automatic Drainage: Built-in automatic drain valve helps remove residual water after operation.
DN100 inlet with flange dimensions of Ø220 mm, Ø180 mm bolt circle, and 8 × Ø17.5 mm bolt holes.
Description
Ca-Fire Protection Co.,Ltd is one of the most credible manufacturers and suppliers of french type above ground fire hydrant in China. Welcome to wholesale custom made fire equipment products at competitive price from our factory. Contact us for more cheap products.
Products Description
CA-FIRE French Type Above-Ground Fire Hydrant is designed for outdoor fire protection systems, providing a reliable water supply connection for firefighting operations. The DN100 inlet and DN65 outlet accommodate the specified pipeline and hose connection requirements. Constructed with a ductile iron body, the hydrant features a flanged inlet and an automatic drainage structure. It is suitable for outdoor fire hydrant networks in industrial facilities, commercial buildings, and other fire protection applications. Custom configurations can be discussed according to project requirements.
OVERVIEW

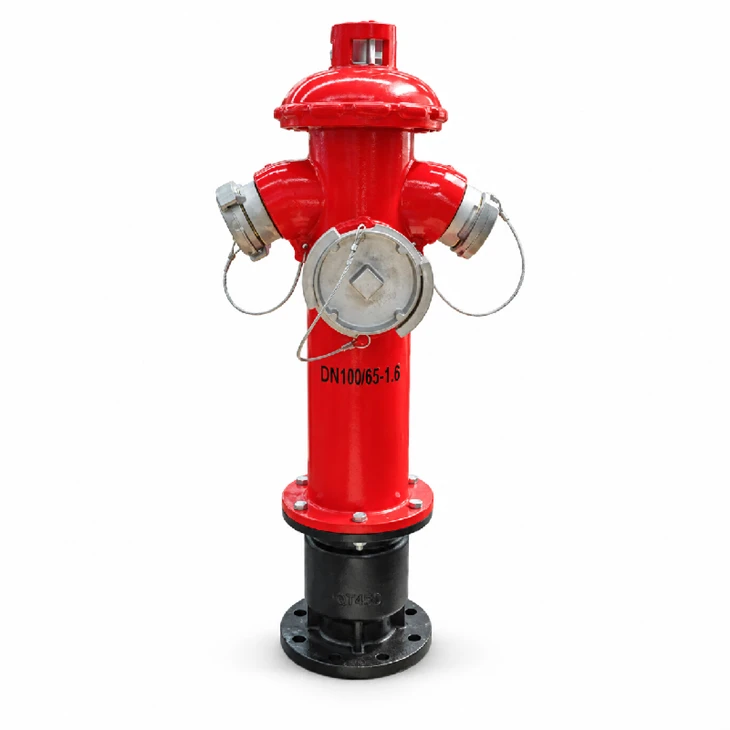

The CA-FIRE DN100/65-1.6 French Type Above-Ground Fire Hydrant is designed for outdoor firefighting water supply. It features a DN100 flanged inlet, a DN65 outlet with a French DSP coupling, and a nominal pressure rating of 1.6 MPa. The main body is made of QT450-10 ductile iron for mechanical strength and durability. An automatic drain valve helps remove residual water after operation. With a total height of 1,124 mm including the flanged elbow, this hydrant is suitable for outdoor fire protection installations requiring compatible French-style hose connections.
Barrel
Main body, installed vertically on the ground in bright red.
Bonnet
Top cover protecting the valve and operating mechanism from dust and rain.
Operating nut
Rotate to open or close the internal valve and control water flow.
Nozzles
Side outlets with coupling interfaces for connecting fire hoses.
|
Parameter |
Specification |
|---|---|
|
Nominal Pressure |
1.6 MPa |
|
Inlet Connection |
Flanged |
|
Inlet Size |
DN100 |
|
Outlet Size |
DN65 |
|
Hose Coupling |
French DSP Coupling |
|
Medium |
Water |
|
Drainage |
Self-Draining |
|
Installation |
Above-Ground |
FEATURES
Cast / ductile iron body
High-quality cast iron or ductile iron construction for durability and corrosion resistance outdoors.
1.6 MPa nominal pressure
Designed for a nominal pressure rating of 1.6 MPa, suitable for compatible outdoor fire hydrant networks.
Self-draining function
Designed to drain residual water after use; antifreeze versions can be customized for cold regions.
French DSP Hose Coupling
Features a DN65 outlet with a French DSP coupling for compatibility with the specified French-style fire hose connection.
DN100 Flanged Inlet
Designed with a DN100 inlet flange, Ø220 mm flange outside diameter, Ø180 mm bolt circle, and 8 × Ø17.5 mm bolt holes.
Outdoor Fire Protection
Suitable for outdoor fire hydrant networks at industrial facilities, commercial properties, and other sites requiring firefighting water access.
HOW IT WORKS
Supply connected
The water supply pipeline connects to the flanged inlet at the base of the barrel.
01
Nut turned
A hydrant wrench turns the operating nut counter-clockwise, slowly opening the internal valve.
02
Water to the outlets
Water flows up the barrel to the side nozzles, where hoses attach to the KWS couplings.
03
Closed and drained
Turning the nut clockwise closes the valve fully; the self-draining function releases residual water.
04
SPECIFICATIONS
|
Parameter |
Specification |
Parameter |
Specification |
|---|---|---|---|
|
Brand |
CA-FIRE |
Model |
DN100/65-1.6 |
|
Type |
French Type Above-Ground Fire Hydrant |
Nominal Pressure |
1.6 MPa |
|
Inlet Diameter |
DN100 |
Outlet Diameter |
DN65 |
|
Hose Coupling |
French DSP Coupling |
Inlet Connection |
Flanged |
|
Total Height |
880mm / 1124 mm(with Flanged Elbow) |
Flange Diameter |
Ø220 mm |
|
Bolt Circle Diameter |
Ø180 mm |
Bolt Holes |
8 × Ø17.5 mm |
|
Main Body Material |
Ductile Iron QT450-10 |
Sealing Material |
Oil-Resistant Rubber |
|
Drainage |
Automatic Drain Valve |
Medium |
Water |
|
Standard |
GB 4452-2011 |
Origin |
Fujian, China |
USE & CARE
Installation
Choose a flat, accessible site with a solid foundation, clear of obstacles.
Build a concrete foundation to the hydrant's size and load requirements, setting anchor bolts during construction.
Place the hydrant on the foundation, align the bolt holes and tighten the nuts.
Connect the water supply pipeline to the bottom of the barrel with a leak-free joint.
Operation
Open: turn the operating nut counter-clockwise with a hydrant wrench, opening slowly; adjust the opening to the fire-fighting need.
Close: turn clockwise until the valve is fully closed.
Maintenance
Inspect at least monthly for cracks, rust and loose connections.
Lubricate the operating nut and valve stem regularly with grease.
Water-tightness test at least yearly: open the valve, fill with water and check connections and valve for leaks.
Precautions
Do not disassemble or modify the hydrant without permission.
Keep the area clear - no stacked objects or parked vehicles.
Emergency fire-fighting use only; not for watering gardens or washing vehicles.
FAQ
Q: What is a French Type Above-Ground Fire Hydrant?
A: A French type above-ground fire hydrant is an outdoor firefighting water supply device designed to provide access to water for fire hoses and firefighting equipment.
Q: What is the model of this fire hydrant?
A: The model is DN100/65-1.6. It has a DN100 inlet, a DN65 hose outlet, and a nominal pressure rating of 1.6 MPa.
Q: What type of hose coupling does this fire hydrant use?
A: This model is configured with a French DSP hose coupling. Please confirm the required coupling size and connection dimensions before ordering.
Q: What is the total height of the fire hydrant?
A: The total height is 1,124 mm with the flanged elbow and 879 mm without the flanged elbow.
Q: What are the flange dimensions?
A: The flange has an outside diameter of 220 mm, a bolt circle diameter of 180 mm, and 8 bolt holes with a diameter of 17.5 mm.
