Fire Hose Reel
Designed for rapid deployment during fire emergencies.
Consists of a valve, inlet pipe, hose reel, fire hose, and spray nozzle.
Provides convenient water delivery for initial firefighting.
Available in multiple models and rated working pressures.
Suitable for hotels, shopping malls, offices, factories, and high-rise buildings.
Description
Ca-Fire Protection Co.,Ltd is one of the most credible manufacturers and suppliers of fire hose reel in China. Welcome to wholesale custom made fire equipment products at competitive price from our factory. Contact us for more cheap products.
Products Description
An indoor fire fighting device that lets the hose unroll quickly from the reel, so water can be sprayed on a fire in its early stage. Supplied for use with 5G series fire hydrant cabinets.
0.8 / 1.0 / 1.6 MPa Rated working pressure
6 m or more Jet range at 0.4 MPa
24 L/min or more Flow at 0.4 MPa
OVERVIEW
The fire hose reel is made up of a valve, an inlet pipe, a reel, a hose and a nozzle. The hose is wound on the reel and connected to the water supply through the inlet pipe and valve. When a fire is found, the user opens the valve, pulls the hose out to the fire and sprays water from the nozzle.
Because the hose can be deployed quickly without first connecting it to a hydrant, the reel is a practical first-aid fire fighting tool for the people inside a building. It is normally installed together with 5G series fire hydrant cabinets, so the hose reel and the hydrant equipment are kept in one place on each floor.
The JPS series covers three rated working pressures, 0.8 MPa, 1.0 MPa and 1.6 MPa, so it can be matched to different building fire water systems. All listed models are tested at an inlet pressure of 0.4 MPa and reach a jet range of at least 6 m with a flow of at least 24 L/min.
Models in this range

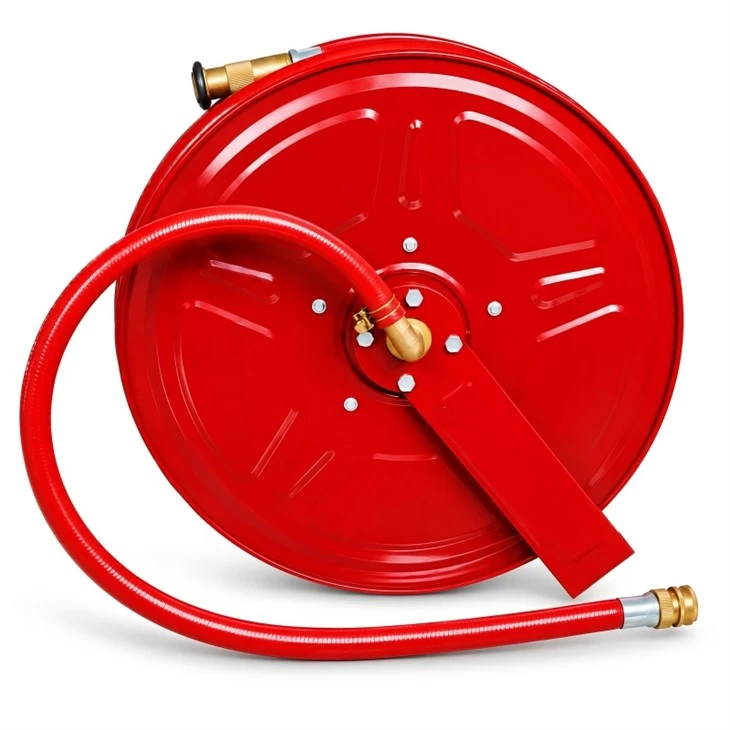

Fire Hose Reel
The standard hose reel, with a red drum, inlet pipe, valve, hose and nozzle. Available in the JPS models listed in the technical table.
Spray Fire Hose Reel JPS1.6-25/30ZW
The 1.6 MPa model, built for systems that run at higher water pressure. The nozzle gives a spray pattern for putting out a fire at close range.
Lightweight Fire Water Hose
A lightweight hose unit wound on a compact red disc, with an elbow inlet connector. Suited to quick, simple deployment. Ask us for the specification of this unit.
Technical parameters
|
Model |
Rated Working Pressure (MPa) |
Inlet Pressure for Spray Test (MPa) |
Jet Range (m) |
Flow Rate (L/min) |
|---|---|---|---|---|
|
JPS0.8-19-25A |
0.8 |
0.4 |
≥ 6 |
≥ 24 |
|
JPS1.0-19-25A |
1.0 |
|||
|
JPS0.8-19-30 |
0.8 |
|||
|
JPS1.0-19-30 |
1.0 |
|||
|
JPS1.6-19-30 |
1.6 |
|||
|
JPS1.0-19-30ZW |
1.0 |
|||
|
JPS1.6-25/30ZW |
1.6 |
The spray performance values apply to all models in the table and are measured with the hose reel inlet at 0.4 MPa.
How to choose a pressure rating
The rated working pressure is the pressure the reel is designed to work at in service. Choose a rating that suits the design pressure of the building's fire water system, and confirm it against the project drawings or with the fire protection designer.
0.8 MPa: for systems with standard working pressure.
1.0 MPa: for systems that run at a higher pressure, such as taller buildings.
1.6 MPa: for high pressure systems, as in the JPS1.6 models.
If you are not sure which model fits, send us the project requirements and our team will help you select one.
Where it is used
Fire hose reels are fitted in public and commercial buildings where people need a quick way to deal with a small fire before firefighters arrive:
Shopping malls and retail centres
Hotels and guesthouses
Office buildings
Factories and industrial plants
High-rise buildings
Other public places
After installation, check the valve, hose and nozzle at regular intervals and follow local fire codes for inspection and maintenance.
FAQ
Q: Where are fire hose reels usually installed?
A: They are used in shopping malls, hotels, office buildings, factories, high-rise buildings and other public places. In most projects the reel is installed in a fire hydrant cabinet, and the exact positions follow the fire protection design for the building.
Q: What is the difference between a fire hose reel and a fire hydrant hose?
A: A fire hose reel keeps the hose wound on a drum that is permanently connected to the water supply, so one person can pull it out and start spraying quickly. It is meant for first-aid fire fighting. A hydrant hose is stored separately and has to be connected to the hydrant before use, which is the usual equipment of trained firefighters.
Q: Which rated working pressure should I choose, 0.8, 1.0 or 1.6 MPa?
A: Choose the rating that fits the design pressure of your fire water system. The JPS series offers 0.8 MPa, 1.0 MPa and 1.6 MPa models. Check the choice against the project drawings or with your designer, and contact us if you need help comparing models.
Q: What flow and jet range can I expect?
A: All models in the technical table reach a jet range of at least 6 m and a flow of at least 24 L/min when the hose reel inlet pressure is 0.4 MPa during the spray performance test.
Q: Is the hose reel compatible with fire hydrant cabinets, and how do I order?
A: Yes. The hose reel is normally supplied together with 5G series fire hydrant cabinets. To order or to ask for a quotation, send us the model, quantity and destination, and we will reply with the details.
