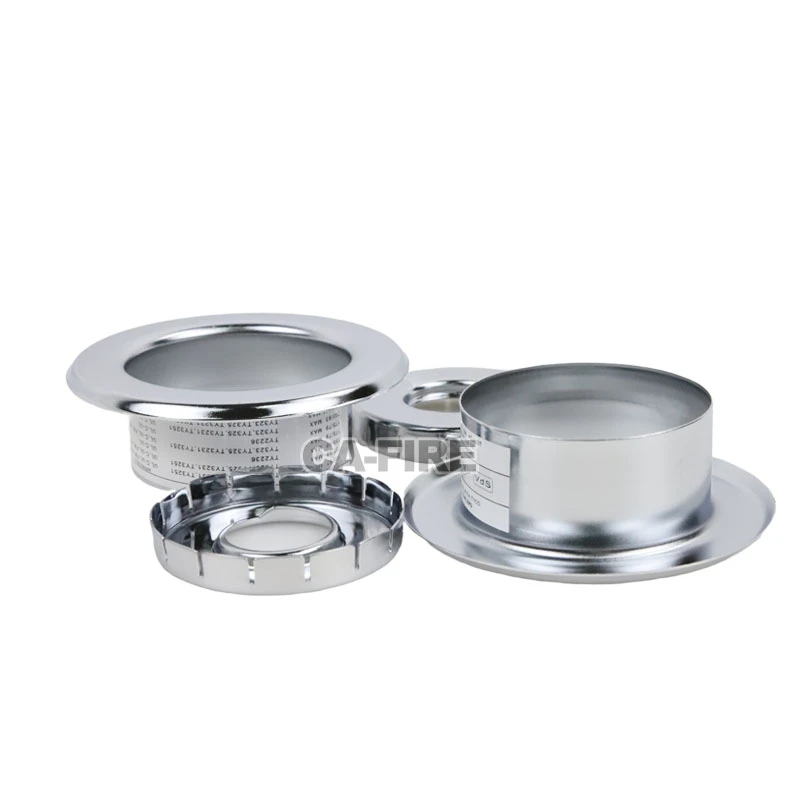

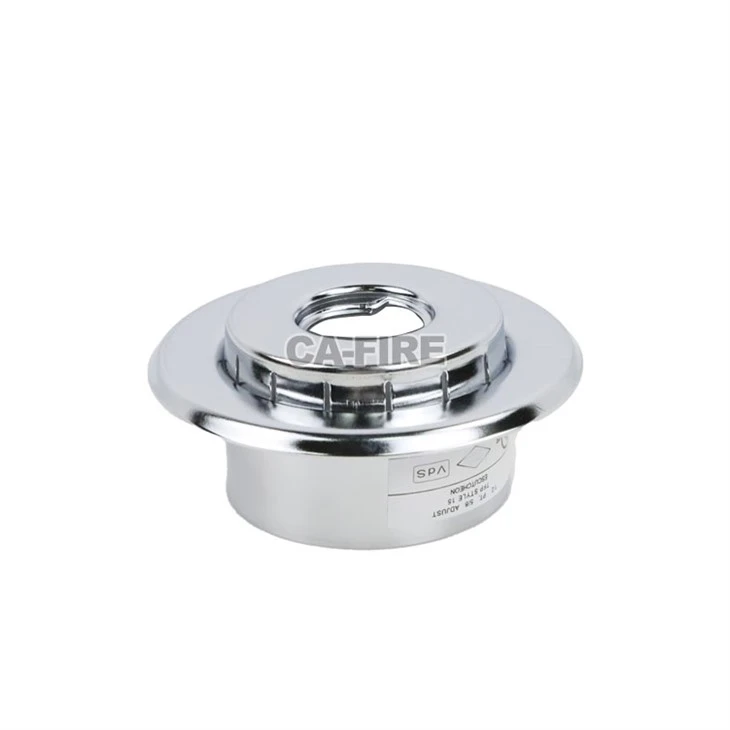

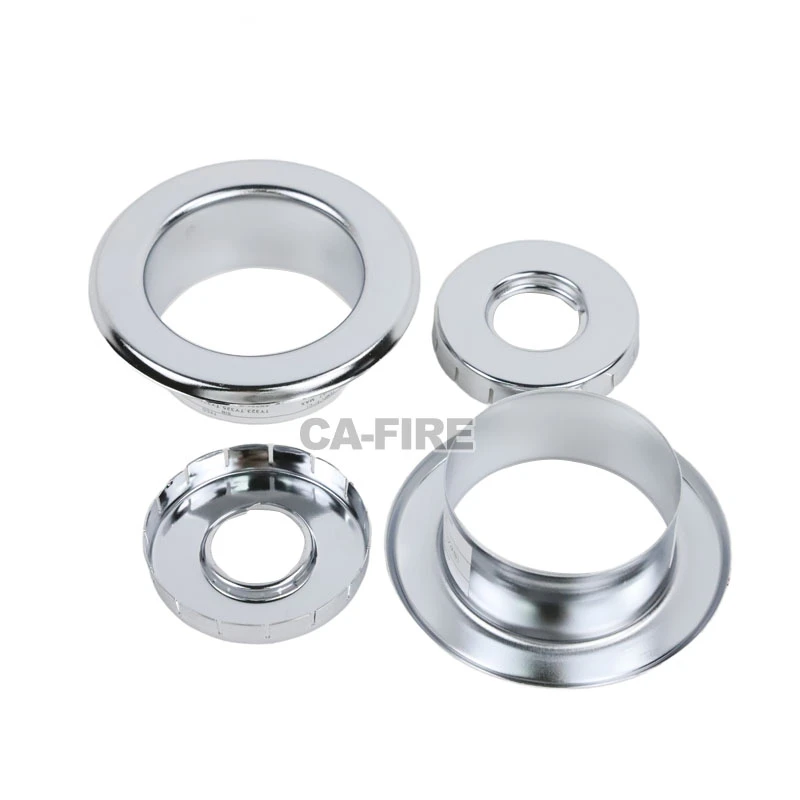

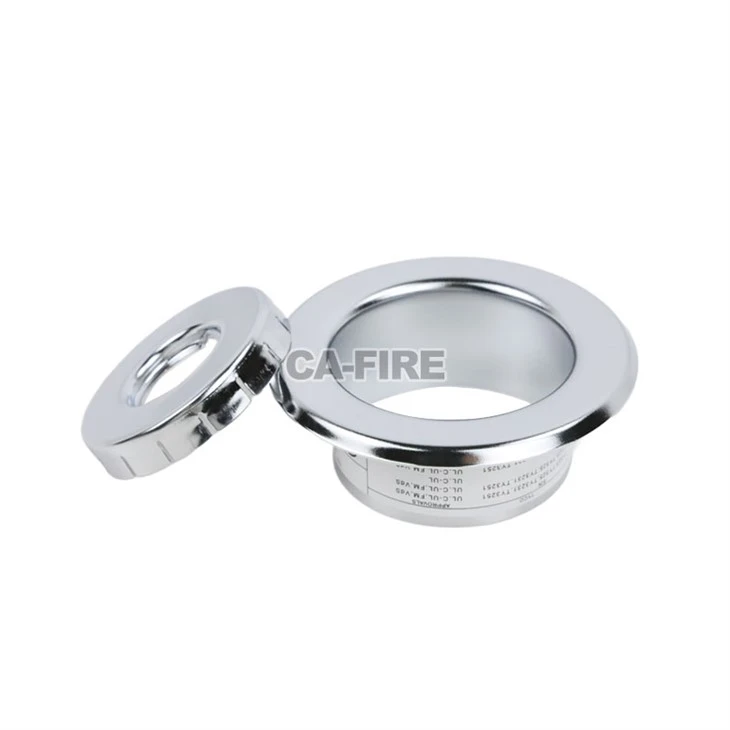

The double escutcheon with height extension offers several advantages over standard single disc escutcheons, making it the preferred choice for ceiling-mounted sprinklers in commercial, residential, and industrial applications.
Key Advantages of Double Escutcheons:
Height Adjustment for Ceiling Variations:
The double disc with height extension allows installers to compensate for uneven ceiling thickness or installation depth deviations, ensuring the sprinkler faceplate aligns perfectly with the ceiling.
Single discs lack this adjustment feature, which may result in recessed or protruding sprinklers.
Enhanced Aesthetic Appearance:
The two-layer design conceals gaps, pipe interfaces, and ceiling cutouts more effectively than a single disc.
Provides a clean, flush, and professional finish, particularly important in hotels, offices, and high-end residential spaces.
Non-Intrusive Installation:
Split-disc construction allows installation without modifying the sprinkler body or thermal element.
Single discs may require precise pre-installation alignment and offer less tolerance, increasing installation difficulty.
Durability and Rigidity:
The double disc design often features thicker material and reinforced structure, making it more resistant to deformation and corrosion.
Single discs, especially thin ones, are more prone to bending, warping, or surface damage over time.
Installation Tolerance:
The double disc design can accommodate 5–30mm variations in ceiling thickness, making it highly flexible in real-world construction conditions.
Single discs have very limited tolerance and may not fit ceilings with uneven surfaces or structural deviations.
