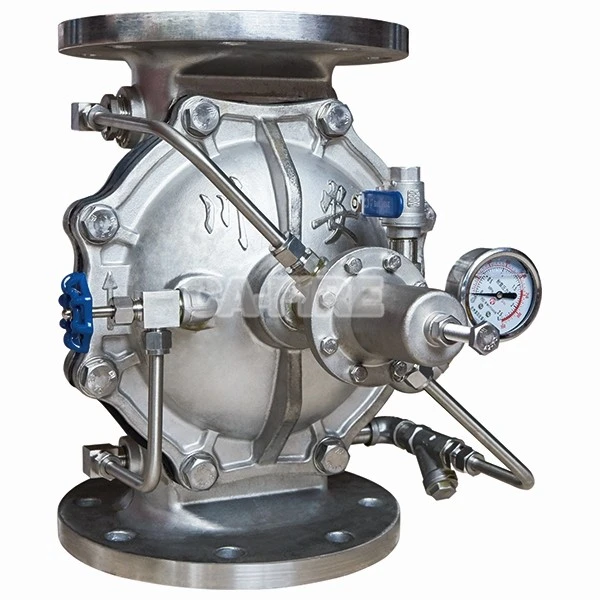

Recision Engineering: Premium Pressure Reducing Valve For Fire Safety

nstallation Guide for CA-FIRE Grooved Pressure Reducing Valve

Preparation:

Procedure:

Prepare the Pipe Ends: Use a pipe cutter to create clean, square cuts on the pipe ends.

Insert the Gasket: Place the appropriate gasket into the grooved end of the pipe.

Attach the Valve: Align the grooved end of the pipe with the valve's grooved connection and insert until it seats against the stop.

Secure the Connection: Using a grooved wrench, tighten the coupling nut to secure the connection. Ensure an even and secure fit without over-tightening.

Check for Leaks: After installation, perform a pressure test to ensure there are no leaks at the connection points.

System Integration: Integrate the valve into the fire protection system and ensure it is properly positioned and aligned with the flow direction.

Post-Installation:

Label the valve for easy identification and maintenance.

Provide operation and maintenance instructions to the system operators.

Maintenance Guide for CA-FIRE Grooved Pressure Reducing Valve

Regular Checks:

Visual Inspection: Regularly inspect the valve for any signs of wear, corrosion, or damage.

Operation Check: Ensure the valve operates smoothly and maintains the correct pressure settings.

Scheduled Maintenance:

Clean the Valve: Periodically clean the valve body and internal components to prevent buildup of sediment or debris.

Check Seals and Gaskets: Inspect seals and gaskets for wear or damage and replace them if necessary.

Pressure Test: Conduct a pressure test to verify the valve's pressure reduction capabilities and ensure it meets the system requirements.

Lubrication: Apply a suitable lubricant to moving parts to ensure smooth operation and extend the valve's lifespan.

Documentation:

Maintenance Records: Keep detailed records of all maintenance activities, including dates, actions taken, and any parts replaced.

Service History: Maintain a service history to track the valve's performance and plan future maintenance activities effectively.

By following these installation and maintenance guidelines, you can ensure the CA-FIRE Grooved Pressure Reducing Valve operates efficiently and reliably, providing essential pressure control in fire protection systems.
