OS&Y Gate Valve Supervisory Switch For Fire Protection Systems
This OS&Y Gate Valve Supervisory Switch provides reliable real-time monitoring of valve positions in fire protection systems. It features a rugged, weatherproof design and dual SPDT contacts to alert control panels of unauthorized valve closure. With easy installation on 1" to 12" valves, it ensures constant water readiness and system safety through precision stem-movement detection and durable performance.
Description
Products Description

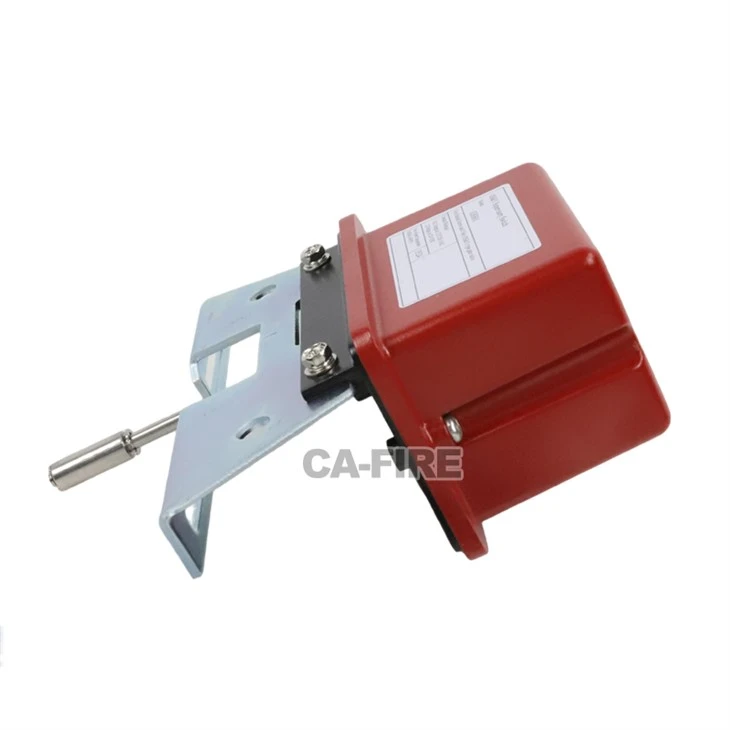

OS&Y Gate Valve Supervisory Switch
The OS&Y Gate Valve Supervisory Switch is a high-performance monitoring solution designed to track the open/closed status of gate valves in water-based fire protection or industrial piping systems. By precisely detecting the vertical movement of the valve stem, this switch provides an immediate alert if the valve is tampered with or accidentally closed, ensuring that water supply remains available when needed most. Constructed with a heavy-duty, corrosion-resistant housing and a weatherproof seal, it is built to withstand demanding indoor and outdoor environments. The device features dual-circuit SPDT contacts for flexible integration with local alarm systems or monitoring panels, and its universal mounting bracket allows for quick, tool-friendly installation on a wide range of valve sizes (1" to 12"). Offering a perfect balance of reliability and affordability, this switch is an ideal choice for projects seeking robust system supervision and asset protection at a competitive price point.
Application & Advantages
The OS&Y Gate Valve Supervisory Switch is a versatile and cost-effective solution designed for real-time monitoring of valve positions in various fluid control systems. Applications primarily include commercial and industrial fire protection networks, where it is installed on the yoke of a gate valve to monitor the stem's travel. It is ideal for main water supply lines, sectional control valves in warehouses, and mechanical room piping where ensuring an "open" status is critical for safety.
The product's primary advantages lie in its robust mechanical design and high compatibility; its universal mounting bracket and adjustable J-hook allow it to be easily retrofitted onto most valve brands (from 1" to 12") without needing to shut down the water system. Furthermore, it offers significant cost savings without compromising on durability, featuring a weather-resistant, corrosion-proof enclosure that performs reliably in both indoor and outdoor environments. With dual-circuit SPDT contacts, it provides flexible wiring options for simultaneous local and remote signaling, making it a dependable and budget-friendly choice for comprehensive system supervision.
Installation Requirements
Installation Requirements
To ensure accurate monitoring and prevent false alarms, the installation of the OS&Y Supervisory Switch must adhere to the following technical requirements:
Valve Position: The switch must be installed only when the gate valve is in the fully open position. This establishes the baseline for the monitoring arm.
Mechanical Alignment: The switch housing must be mounted on the valve yoke so that the spring-loaded operating arm rests securely against the valve stem. It should be positioned in a "groove" or on a flat section of the stem so that any downward movement (closing of the valve) forces the arm to move and trip the internal switch.
Mounting Hardware: Use the provided J-hooks or U-bolts to secure the device to the valve yoke. The bolts must be tightened sufficiently to prevent the switch from sliding or rotating, which could lead to a loss of signal or mechanical interference.
Stem Clearance: Ensure the valve stem is clean and free of excessive grease or debris that could interfere with the sensitivity of the operating arm. There must be enough clearance for the stem to travel its full length without hitting the switch body.
Wiring & Conduit: All wiring should be performed in accordance with local electrical codes. Use water-tight conduit fittings for outdoor installations to prevent moisture ingress into the housing.
Testing and Calibration: After installation, the valve should be closed slowly to verify that the switch triggers within the first two revolutions of the handwheel or when the stem has moved no more than 1/5 of its total travel distance.
