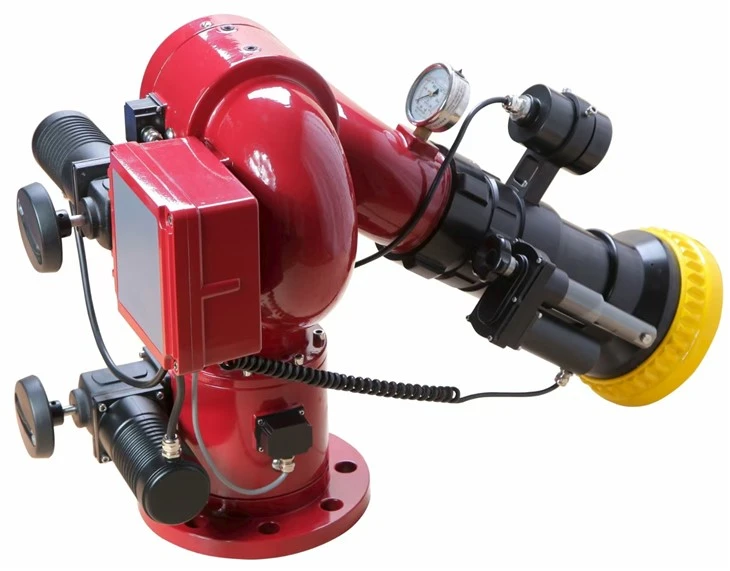

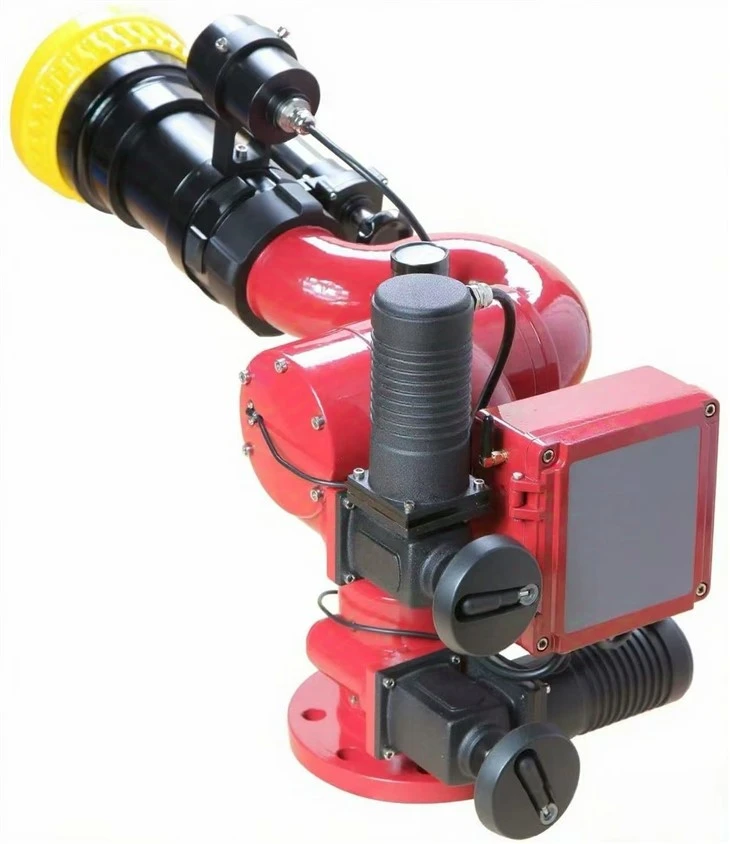

Fire Fighting Water Cannon Electrically Controlled Fixed Fire Monitor
video
Fire Fighting Water Cannon Electrically Controlled Fixed Fire Monitor

Fire Fighting Water Cannon Electrically Controlled Fixed Fire Monitor

Products Description Electrically Controlled Fixed Fire Monitor The PSKD series is a high-performance electrically controlled fixed fire monitor, engineered for critical environments like industrial plants, petrochemical facilities, ports, and warehouses. Compliant with national standards...

Description

Ca-Fire Protection Co.,Ltd is one of the most credible manufacturers and suppliers of fire fighting water cannon electrically controlled fixed fire monitor in China. Welcome to wholesale custom made fire equipment products at competitive price from our factory. Contact us for more cheap products.




Products Description



Electrically Controlled Fixed Fire Monitor


When it comes to safeguarding high-risk areas against fire emergencies, the PSKD series of electrically controlled fixed fire monitors stand out as a game-changer. Meticulously crafted to meet the rigorous demands of industrial and commercial fire protection, this series is a staple in settings such as petrochemical complexes, ports, oil depots, large coal yards, and warehouses. Aligned with national standards GB19156-2019 and GB19157-2003, it merges cutting-edge control technology with robust fire suppression capabilities, ensuring rapid and effective response when every second counts.

20250718114532176

01

Unparalleled Control Freedom

    Whether you're at the scene, in a remote control room, or on the move, the PSKD series has you covered. It offers three distinct control methods: on-site manual operation for direct adjustments, remote wired control via CAN bus (with a range of over 200m) for centralized management, and wireless remote control (up to 150m) for flexible, on-the-go operation. This versatility ensures firefighters can act swiftly without exposing themselves to unnecessary risks.

02

Superior Coverage & Precision Engineering

    With a horizontal rotation range of 0-360° and vertical rotation from -85° to +85°, no corner of your facility is beyond reach. The monitor effortlessly switches between DC columnar jets (for focused, long-range fire knockdown) and foggy sprays (for cooling and smoke dispersal). Its worm and worm gear transmission system ensures smooth, quiet operation with self-locking functionality, guaranteeing stability even in intense firefighting scenarios.

03

Smart & Adaptable Design

     Designed to integrate seamlessly into your existing safety infrastructure, the PSKD series offers optional video capture and storage, letting you monitor the scene remotely. It also supports two installation modes: seated (standard) and hanging (available with prior consultation), making it suitable for diverse spatial layouts.



Model PSKD8/30W-HG/BU PSKD8/40W-HG/BU PSKD8/50W-HG/BU PSKD10/60W-HG/BU
Rated Flow 30L/S 40L/S 50L/S 60L/S
Range 60m 65m 70m 75m
Rated Pressure 0.8MPa 1.0MPa
Max Working Pressure 1.6MPa
Maximum Spray Angle ≧90°
Horizontal Rotation Angle 0~360°
Vertical Rotation Angle -85° ~ +85°
Power Supply input voltage AC220V, working voltage DC24V
Wired Control Distance ≧200m
Wireless Control Distance 150m
Inlet Size DN80



FAQ

Q: What makes the PSKD series suitable for industrial environments?

A: Its rugged build, wide coverage, and multi-control options make it ideal for handling the unique fire risks in industrial plants, petrochemical sites, and similar high-stakes areas.



Q: Can I control multiple monitors with a single remote?

A: Yes. Both the wireless remote controller and centralized control host allow you to manage multiple units by selecting specific device addresses.



Q: Is professional installation necessary?

A: While seated installation is straightforward, hanging installation requires pre-communication with our team to ensure proper setup. We recommend professional installation to maximize performance.
