Ca-Fire Protection Co.,Ltd is one of the most credible manufacturers and suppliers of fold-able adjustable flow rate fire fighting water nozzle in China. Welcome to wholesale custom made fire equipment products at competitive price from our factory. Contact us for more cheap products.

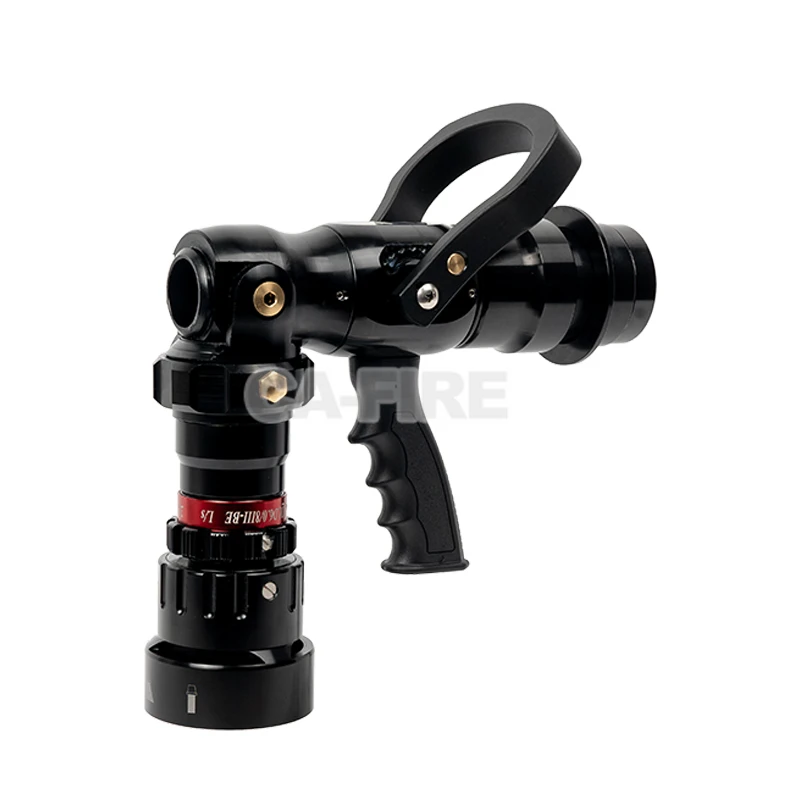

CA-FIRE Foldable Adjustable-Flow Fire Nozzle – Compact Multi-Mode Suppression for Mobile Emergency Scenarios

Key Value Proposition: CCC & ISO-Certified Foldable Fire Nozzle – Space-Saving Collapsible Design, Stepless Flow Adjustment, for Global Patrol Teams, Home Emergency & Small Business Fire Response (Distinct from Fixed-Shape High-Pressure, Foam & Marine Nozzles)

1. Core Competitive Advantages (Foldable & Adjustable-Flow Focused, High Differentiation)

Patented Foldable Compact Structure: Adopts a 2-section telescopic foldable design, reducing storage volume by 60% when folded (from 32cm to 15cm) – fits into backpacks, patrol car glove boxes, or home emergency kits, solving the portability pain point of fixed-shape nozzles that are hard to store.

Stepless Flow Rate Adjustment: Rotates the valve core to adjust flow rate from 5L/min to 30L/min (no gear limits), matching small-scale grass fires, vehicle cabin fires, and small warehouse initial fires – one nozzle replaces the need for both small-flow forest nozzles and medium-flow industrial nozzles.

3-In-1 Multi-Scenario Jet Modes: Integrates concentrated straight jet (30~40m range for long-distance targeting), wide-area spray (10~15m coverage for cooling), and fine mist (5~8m for smoke reduction) – mode switching via one-click rotation, no extra accessories required (unlike foam nozzles needing concentrate supply).

Lightweight Durable Hybrid Build: Constructed from high-strength engineering plastic + 304 stainless steel core, net weight ≤1.5kg (lighter than 1.8kg lightweight foam nozzles and 3.8kg marine nozzles); passes 2m drop impact test and UV resistance test, adapting to -15℃~+65℃ environments.

Universal Quick-Connect Interface: Equipped with DN25/DN32/DN40 multi-adapter quick-connect, compatible with fire truck hose reels, small-diameter backpack hoses, and household garden hoses – the only nozzle in the product line that supports both professional and civilian water sources.

2. Detailed Technical Specifications (Foldable & Adjustable-Flow Centric)

Category	Details
Model Number	FAF-30 (Foldable Adjustable-Flow)
Product Name	Foldable 3-Mode Adjustable-Flow Multi-Functional Fire Nozzle
Material	High-Strength Engineering Plastic (casing); 304 Stainless Steel (core/filter); Non-slip Rubber (grip)
Connection Type	DN25/DN32/DN40 Multi-Adapter Quick-Connect (professional/civilian compatible)
Flow Rate Range	5~30L/min (stepless adjustment, no gear limits)
Jet Modes	Concentrated Straight Jet (30~40m); Wide-Area Spray (10~15m); Fine Mist (5~8m)
Working Pressure	1.0~2.5MPa
Folded Dimensions	15cm (length) × 8cm (diameter)
Unfolded Dimensions	32cm (length) × 8cm (diameter)
Net Weight	≤1.5kg
Filter Specification	80-mesh Stainless Steel Filter (debris prevention)
Service Environment	-15℃~+65℃, Impact-Resistant (2m drop test passed), UV-Resistant
Certifications	CCC (fire safety), ISO 9001, TüVRheinland (foldable structure durability)
Origin	Fujian, China
Packaging	Compact Shockproof Carton (individual protective bag for storage)
Lead Time	12 days (1-100 units); Negotiable (≥100 units)
MOQ	100 units (customization); 20 units (standard orders)

3. Core Parameter Comparison Table (vs. Previous Nozzle Models)

Parameter	Foldable Adjustable-Flow Nozzle (This Model)	High-Pressure Water Nozzle	Lightweight Foam Nozzle	Small-Flow Forest Nozzle	Marine-Grade Nozzle
Foldable Design	✅ 60% storage volume reduction when folded	❌ Fixed shape	❌ Fixed shape	❌ Fixed shape	❌ Fixed shape
Flow Rate Adjustment	✅ 5~30L/min (stepless)	✅ 15~30L/min (gear)	✅ 15~30L/min (gear)	✅ 5~15L/min (gear)	✅ 6.5~13L/s (fixed range)
Jet Modes	3 (straight/spray/mist)	3 (straight/spray/fog)	2 (foam/straight)	2 (straight/mist)	4 (straight/spray/mist/foam-compatible)
Net Weight	≤1.5kg	≤1.8kg (brass)	≤1.8kg (plastic-brass)	≤1.2kg (plastic)	3.8kg (aluminum alloy)
Interface Compatibility	DN25/DN32/DN40 (pro/civilian)	DN40/DN65 (pro only)	DN40/DN50 (pro only)	DN25/DN32 (pro only)	Storz/Machino (marine only)
Primary Application Scenarios	Patrol, home emergency, small business	Industrial workshops, commercial buildings	Property patrol, vehicle rescue	Forest, mountain patrol	Shipboard, port facilities
Foam Compatibility	❌ (water-only)	❌ (water-only)	✅ (3%/6% mixing ratio)	❌ (water-only)	✅ (marine AFFF foam)

4. Application Scenarios (Portable & Multi-Scenario Specific, Distinct from Previous Models)

Tailored for mobile, space-constrained fire emergency response (unlike industrial fixed nozzles and marine specialized nozzles):

Fire Patrol Teams: Equipped in patrol car glove boxes or ranger backpacks for urban-rural fringe patrols – folded design saves space; adjustable flow handles small grass fires and roadside vehicle fires.

Home & Small Business Emergency: Stored in residential closets, restaurant kitchens, or retail store backrooms – compatible with household garden hoses for initial fire suppression before firefighters arrive.

Outdoor & Event Scenarios: Camping grounds, music festivals, or construction site temporary camps – lightweight and foldable for backpack carry; fine mist mode cools surrounding areas to prevent fire spread.

Property Management Patrols: Used by security teams for shopping mall parking lots, apartment building corridors – multi-mode jet adapts to vehicle oil fires and electrical cabinet small fires.

5. Product Visuals & Resources (Foldable-Focused)

High-Definition Imagery: Close-up shots of foldable telescopic structure, stepless flow adjustment valve, multi-adapter interface, non-slip rubber grip, and folded/unfolded size comparison; side-by-side comparison with fixed-shape nozzles (highlighting storage space differences).

Demonstration Videos: 90-second clip featuring: 10-second fold/unfold operation, stepless flow adjustment test (5L/min to 30L/min), 3-mode jet switching, and compatibility with household garden hoses.

Downloadable Resources: English technical datasheet (PDF) with foldable storage guide, interface adapter matching chart, multi-scenario operation manual, and the above parameter comparison table.

6. Installation, Operation & Maintenance (Foldable-Friendly)

Connection: No professional tools required – select the appropriate adapter (DN25/DN32/DN40) for water hoses, lock with one click; ensure the filter is installed before use to prevent debris clogging (bilingual guidelines include adapter selection tips).

Operation: Unfold the nozzle to full length, hold the non-slip grip, aim at the fire base; rotate the valve core to adjust flow rate (clockwise to reduce, counterclockwise to increase); switch jet modes via the nozzle head rotation – one-handed operation for emergency response.

Maintenance: Ultra-simple field maintenance – rinse the filter with clean water after use; fold the nozzle and store in a dry place to avoid UV aging; check the telescopic joint for looseness monthly (no complex disassembly required).

Packaging Protection: Compact shockproof carton with individual protective bags prevents scratches during storage and transportation; the folded size fits into standard mailboxes for small-batch delivery.

7. After-Sales Support & Global Service (Portable Scenario-Tailored)

Warranty Coverage: 3-year global warranty on engineering plastic casing and stainless steel core; 1-year warranty on rubber grip and adapters – free replacement for telescopic joint loosening or flow adjustment valve failure (common in portable use).

Customization Solutions: Accepts portable-specific customization (adapter type addition, grip color matching for patrol teams, logo engraving for property management companies) with MOQ 100 units; supports foldable length adjustment for special storage needs.

Logistics & Payment Terms:

Delivery Options: FOB (Fujian), CIF (global ports), EXW, small-batch express delivery (DHL/FedEx for home emergency kits), and bulk container delivery for patrol team procurement.

Payment Flexibility: Accepts USD, EUR, JPY via T/T, L/C, PayPal, and Western Union (preferred by small businesses, property management companies, and patrol teams).

Multilingual Support: 24/7 technical assistance (response time ≤2 hours) in English, Chinese, Spanish; dedicated team for adapter matching and multi-scenario operation consultation.

8. Customer Testimonials (Foldable & Portable Scenario-Focused)

Rural Patrol Team (Chile): "This foldable nozzle fits perfectly in our backpacks for mountain patrols – we used to carry heavy fixed nozzles, but now it's lightweight and easy to store. The stepless flow adjustment is great for both small grass fires and cabin fires."

Small Restaurant Owner (Argentina): "CCC certification passed local fire inspection; we store it in the kitchen and connect it to our garden hose. The fine mist mode cooled our grill area during a small grease fire, preventing it from spreading to the dining room."

Property Management Company (Philippines): "The multi-adapter interface fits our patrol car hose reels and building garden hoses. Our security staff love the one-handed operation – they've used it twice for parking lot vehicle fires, and the adjustable flow saved water."

9. Safety Warnings & Compliance

This CCC/ISO-certified foldable adjustable-flow nozzle must be operated by trained personnel or ordinary users (for home emergency) in line with local fire safety codes. Do not use it for large-scale industrial or marine fires (insufficient flow rate and pressure); do not adjust the flow rate or fold the nozzle while water is being supplied to avoid pressure damage. Store in a dry place after folding to prevent telescopic joint rust.

10. Call-to-Action (Portable Scenario-Optimized)

Secure a customized quotation for patrol team, home emergency kit, or small business fire protection projects (supports small-batch orders).

Download the foldable nozzle technical datasheet and parameter comparison table (English PDF) for procurement approval.

Consult our portable fire equipment experts for tailored adapter matching and flow rate adjustment guidance for specific scenarios (instant chat via WhatsApp/WeChat).

Contact: DulciaEmail: sales8@ca-fire.comTel/WhatsApp: +86 19163811547WeChat: Dulcia8
