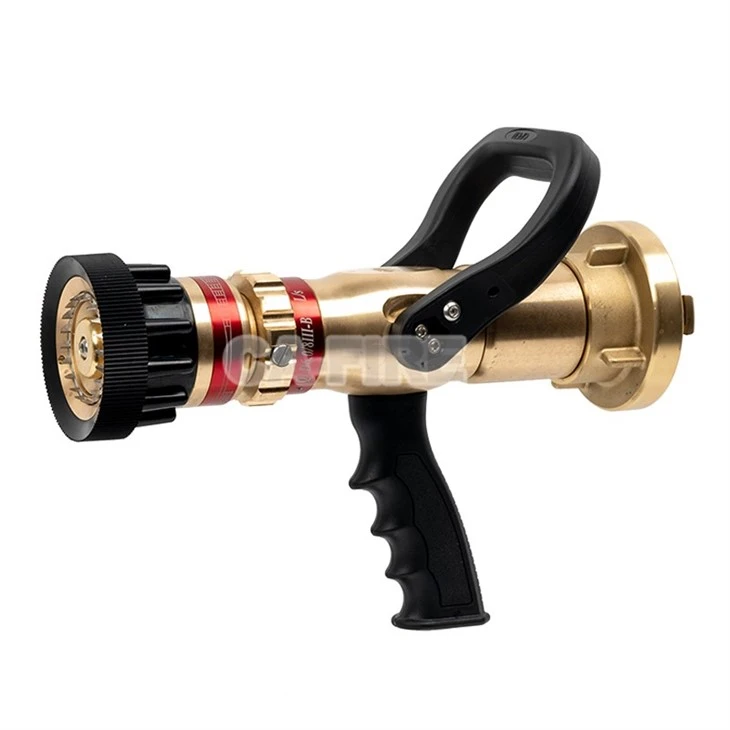

Jet Nozzles Fire Hose Water Nozzle

3.1 Lightweight Material Design

The main body is made of 6061-T6 aluminum alloy, which has a tensile strength of ≥290 MPa after solution aging treatment. Combined with the anodized coating, it not only achieves 60% of the weight of traditional cast iron nozzles but also has excellent corrosion resistance, allowing long-term use in high-salt environments such as coastal areas or chemical corrosion scenarios.

3.2 Multi-Functional Jet System

150° Rotating Nozzle Head: Supports stepless switching from straight jet to wide water mist within 150°, which can quickly adapt to different fire-fighting needs such as "extinguishing open flames" and "cooling and heat insulation" without additional tools. The operation time is 40% shorter than that of traditional nozzles;

4-Level Flow Markings: Laser-etched flow scale markings are applied to the nozzle head, which will not wear or fall off after long-term use, allowing firefighters to quickly identify the current flow level;

Anti-Tangle Rotating Coupling: The tail coupling is equipped with a full-time rotating structure, which effectively prevents the fire hose from twisting due to dragging and improves operational flexibility.

3.3 User-Friendly Operation Design

Equipped with a horseshoe-shaped valve handle, which conforms to ergonomic grip angles. Switching and flow adjustment can be completed with one hand; the operating torque of the ball valve switch is only 7.7 N·m, which can be easily opened and closed even when wearing fire gloves, adapting to the rapid response needs in emergency fire-fighting scenarios.
