Intelligent Automatic Fire Tracking & Jet Suppression System

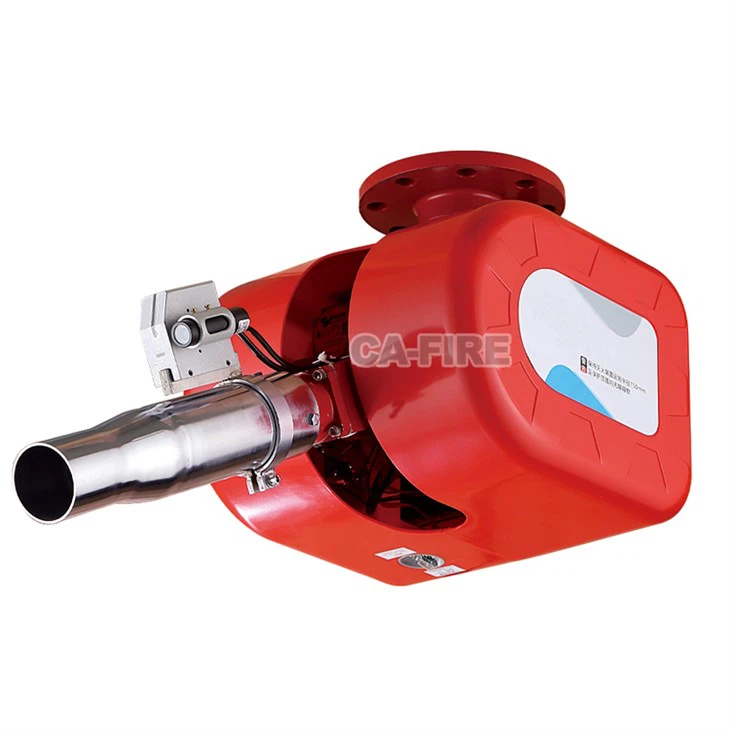

The automatic tracking fire monitor provides intelligent early fire detection and rapid suppression for large indoor spaces. Using infrared and UV sensing, it locates the fire source, automatically rotates, and delivers a long-range jet for accurate extinguishing. With wide coverage, fast response, and high reliability, it is ideal for airports, stations, stadiums, factories, and commercial facilities.
Description
Ca-Fire Protection Co.,Ltd is one of the most credible manufacturers and suppliers of intelligent automatic fire tracking & jet suppression system in China. Welcome to wholesale custom made fire equipment products at competitive price from our factory. Contact us for more cheap products.
Products Description
Smart Fire Targeting Jet Monitoring
The Automatic Tracking and Positioning Jet Fire Extinguishing System is an intelligent, fully automatic fire suppression solution that integrates computer control, optical detection, video imaging, and mechatronics. Using UV/IR sensing technology, the system detects early-stage flames, locks the fire source, and precisely directs the jet stream to extinguish fires quickly and efficiently.
It offers long detection range, wide protection coverage, rapid response, high sensitivity, and large flow capacity. With full-area monitoring and extremely low false alarm rates, it ensures fast and reliable protection for large indoor spaces such as convention centers, airports, train stations, exhibition halls, shopping malls, stadiums, theaters, factories, hospitals, and hotels.
Specifications
| Parameter | ZDMS0.6/5S-HX | ZDMS0.6/10S-HX |
|---|---|---|
| Flow Rate ±8% (L/s) | 5 | 10 |
| Rated Working Pressure (MPa) | 0.6 | 0.6 |
| Jet Radius (m) | 34 | 39 |
| Max Protection Radius (m) | 30 | 35 |
| Monitoring Radius (m) | 40 | 40 |
| Locating Time (s) | ≤30 | ≤30 |
| Working Voltage | DC12–24V | DC12–24V |
| Standby Power Consumption | 1W | 1W |
| Installation Height (m) | 6–20 | 6–25 |
| Horizontal Rotation Angle (°) | 360° | 360° |
| Vertical Rotation Angle (°) | −90° to +30° | −90° to +30° |
| Ambient Temperature (°C) | −10 to +55 | −10 to +55 |
| Relative Humidity | ≤95% RH | ≤95% RH |
| Installation Method | G1 1/4" Internal Thread Flange | G1 1/4" Internal Thread Flange |
| Operating Radius | 350mm | 350mm |
Key Features & Advantages
Key Features
Integrated Intelligent Technology: Combines advanced computer processing, multi-band optical detection (Infrared/Ultraviolet), and mechatronic control with real-time video transmission.
Active Multi-Band Detection: Utilizes high-sensitivity electronic components to detect specific IR/UV radiation emitted by combustion, allowing for non-contact, long-distance fire sensing.
Precision Targeting: Features an automated horizontal and vertical rotation mechanism that swiftly and accurately aligns the nozzle with the fire source.
Fully Automated Response: Automatically triggers water pumps and valves upon target lock, delivering the extinguishing agent directly to the ignition point.
Versatile Configurations: Available in multiple formats, including Jet Type, Fire Monitor Type, and Spray Type to suit different architectural requirements.
Core Advantages
Rapid Response & High Efficiency: High sensitivity and fast reaction times allow the system to suppress fires in their incipient (early) stages, significantly reducing damage.
Extensive Coverage: Offers a long detection and spray range with high flow rates, providing a large protection area with zero blind spots.
High Reliability: Advanced multi-band scanning ensures an extremely low false alarm and accidental triggering rate.
Smart Monitoring: Provides 24/7 all-around surveillance and visual feedback for enhanced safety management.
Broad Application: Ideal for large-scale indoor spaces such as airports, convention centers, stadiums, theaters, shopping malls, and industrial warehouses.
Installation Requirements and Precautions
Installation Requirements
Obstruction-Free Zone: Ensure a clear space (approx. 45cm radius) around the device. Do not block the sensors or nozzle with beams, lights, or ventilation ducts.
Piping Preparation: Pipes must be thoroughly flushed before installation to remove debris that could clog the solenoid valve or nozzle.
Stable Mounting: Use vibration-resistant brackets to secure the pipeline, ensuring it can withstand the recoil force during high-pressure discharge.
Correct Alignment: The device must be installed vertically and connected securely via the standard flange to prevent leaks.
Precautions
Lens Maintenance: Regularly clean the IR/UV sensor windows with a soft cloth to maintain detection sensitivity; avoid using abrasive or oily cleaners.
Environmental Interference: Keep the sensors away from high-intensity light sources, heaters, or strong electromagnetic interference to prevent false triggers.
System Testing: During testing, ensure the jet path is clear of personnel to avoid injury from high-pressure water flow.
Power & Wiring: Use fire-resistant cables and ensure a stable DC12–24V power supply to maintain 24/7 monitoring reliability.
FAQ
Q1: What type of fire protection scenario is this system designed for?
A1: It is designed for large indoor spaces such as terminals, stadiums, exhibition halls, factories, warehouses, and commercial buildings, providing rapid response and accurate fire suppression.
Q2: How does the system detect and locate the fire source?
A2: The monitor uses infrared/UV sensing technology to detect flame radiation signals. Once confirmed, it automatically aims at the fire source and activates water spray to extinguish the fire.
Q3: What is the maximum jet radius of the monitor?
A3: Depending on the model, the jet radius ranges from 34m to 39m, ensuring long-distance suppression for wide coverage.
Q4: Does the system require manual operation?
A4: No. It supports fully automatic fire detection, positioning, rotation, and spraying without manual intervention.
Q5: What is the locating time for fire tracking?
A5: The system can locate the fire source within 30 seconds, enabling rapid and accurate suppression in the early stage.
