Adjustable-Flow Manual Fire Monitor

Name: China Adjustable-Flow Manual Fire Monitor Manufacturers Suppliers Factory - CA-Fire Protection
Brand: CA-FIRE
SKU: 293615922

The PS series adjustable-flow manual fire monitor is a high-capacity fire suppression device engineered for large-space fire emergencies, compliant with GB 19156-2019 Fire Monitors and industrial fire safety standards. As a critical tool for early fire control in expansive areas, it addresses a key fire safety basic principle: large-scale fires (e.g., high-stack warehouse blazes) generate intense heat radiation, making ordinary fire hoses (limited by range and flow) insufficient—this fire monitor’s long range and adjustable flow enable rapid coverage of wide, distant fire zones.

Send Inquiry Chat Now

Description

Ca-Fire Protection Co.,Ltd is one of the most credible manufacturers and suppliers of adjustable-flow manual fire monitor in China. Welcome to wholesale custom made fire equipment products at competitive price from our factory. Contact us for more cheap products.

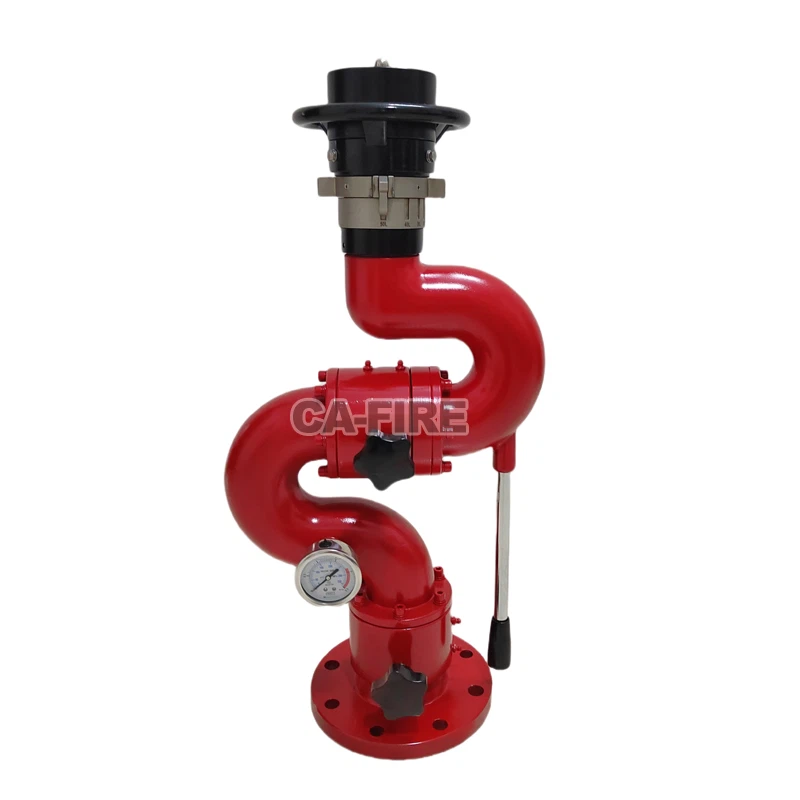

CA-FIRE Adjustable-Flow Manual Fire Monitor

The PS series adjustable-flow manual fire monitor is a high-capacity fire suppression device engineered for large-space fire emergencies, compliant with GB 19156-2019 Fire Monitors and industrial fire safety standards. As a critical tool for early fire control in expansive areas, it addresses a key fire safety basic principle: large-scale fires (e.g., high-stack warehouse blazes) generate intense heat radiation, making ordinary fire hoses (limited by range and flow) insufficient-this fire monitor's long range and adjustable flow enable rapid coverage of wide, distant fire zones.

Crafted from lightweight aluminum alloy, this manual fire monitor features a flow-regulating valve, real-time pressure gauge, and multi-angle adjustment mechanism. It supports flexible flow tuning to adapt to different fire types (per NFPA fire classification: Class A solid combustibles, Class B liquid fuels), making it indispensable for industrial zones, large warehouses, and petrochemical facilities where standard fire suppression tools fall short.

Specification Item	PS850W-D	PS1080W-D
Adjustable Flow Range (L/s)	20, 30, 40, 50	60, 70, 80
Rated Working Pressure (MPa)	0.8 (for 20-40L/s); 1.0 (for 50L/s)	1.0 (for all flow rates)
Working Pressure Range (MPa)	0.5–1.6	0.5–1.6
Minimum Effective Range (m)	≥50 (20L/s); ≥60 (30L/s); ≥65 (40L/s); ≥70 (50L/s)	≥75 (60L/s); ≥80 (70L/s); ≥85 (80L/s)
Maximum Spray Angle (°)	90	90
Horizontal Rotation Angle (°)	360 (full rotation)	360 (full rotation)
Vertical Adjustment Range (°)	-60~+70	-60~+70
Main Body Material	High-Strength Aluminum Alloy	High-Strength Aluminum Alloy
Installation Mode	Seated Arrangement	Seated Arrangement
Connecting Flange Specification	DN100 (4")	DN100 (4")
Operating Temperature Range	-10℃~+60℃	-10℃~+60℃

Large Logistics Warehouses: Addresses Class A high-stack fires (e.g., palletized goods), where the 70–85m range covers distant stacks.

Petrochemical Tank Farms: Controls Class B liquid fires (e.g., oil tanks), using adjustable flow to pair with foam systems.

Open-Air Cargo Yards: Covers wide, unenclosed spaces where fire hoses cannot reach distant blazes.

Large-Scale Industrial Plants: Suppresses fires in high-ceiling production halls (vertical adjustment covers elevated equipment).

Installation Tips and Maintenance

Installation Tips

Seated Mounting: Fix to a stable concrete base via the DN100 (4") connecting flange, ensuring alignment with the fire water main (compliant with GB 50974-2014 Fire Water Supply Design Code).

Pipe Connection: Use DN100 fire-resistant piping; flush the pipeline thoroughly before installation to avoid clogging the flow valve.

Operational Clearance: Reserve ≥1.5m space around the monitor for unobstructed rotation and flow adjustment (per fire safety access rules).

Maintenance

Monthly Inspection: Test rotation flexibility and flow adjustment smoothness (required by local fire departments to ensure manual devices are operational).

Quarterly Performance Test: Verify flow rates and pressure (e.g., confirm 50L/s flow at 1.0MPa for PS850W-D) to ensure compliance with rated parameters.

Annual Seal Replacement: Swap aging O-rings and seals to prevent leakage (leaks reduce pressure, lowering fire suppression effectiveness).

Storage: Keep in -10℃~+60℃ environments; avoid exposure to corrosive substances (preserving aluminum alloy integrity).
