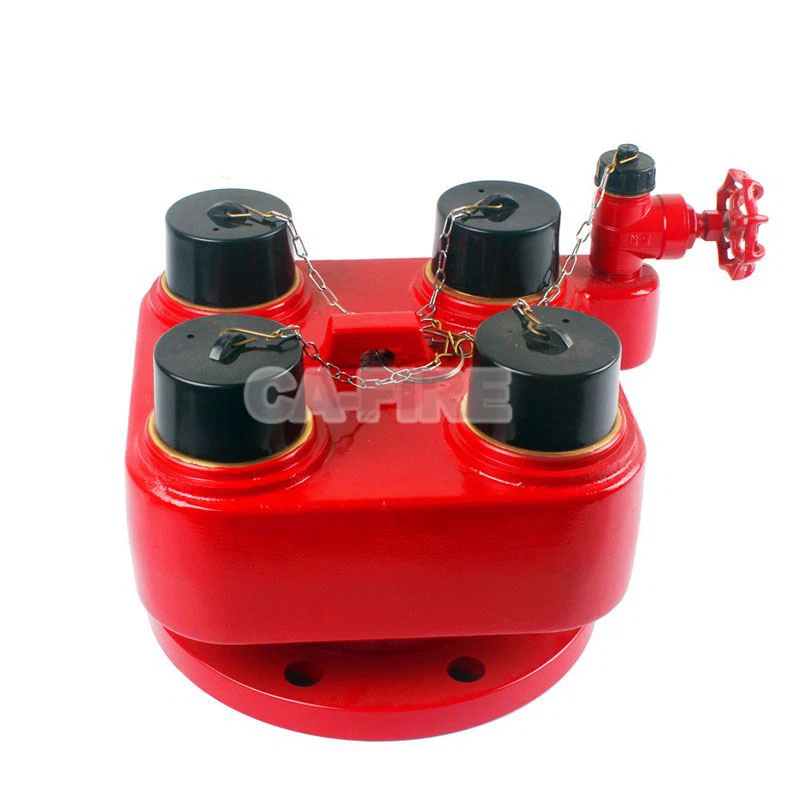

4-Way Water Divider Water Breeching Inlet Fire Hose Siamese Connection
4-Way Water Divider | Water Breeching Inlet Fire Fighting Water Distribution Manifold 1. Product Overview This 4‑Way Water Divider (Breeching Inlet) is a professional water distribution manifold for fire fighting systems. It allows one water input to split into four output ports, enabling fast...
Description
Ca-Fire Protection Co.,Ltd is one of the most credible manufacturers and suppliers of 4-way water divider water breeching inlet fire hose siamese connection in China. Welcome to wholesale custom made fire equipment products at competitive price from our factory. Contact us for more cheap products.
4-Way Water Divider | Water Breeching Inlet
Fire Fighting Water Distribution Manifold
1. Product Overview
This 4‑Way Water Divider (Breeching Inlet) is a professional water distribution manifold for fire fighting systems. It allows one water input to split into four output ports, enabling fast multi‑hose connection and water supply for emergency fire rescue.
2. Key Technical Parameters
| Item | Specification |
|---|---|
| Type | 4‑Way Water Divider / Breeching Inlet |
| Body Material | Ductile Iron GJS‑400‑15 / Aluminum Alloy |
| Inlet Size | DN80 / DN100 |
| Outlet Size | 2.5" (65mm) / 3" (80mm) |
| Working Pressure | 1.6 MPa (16 Bar) |
| Connection Type | Threaded / Storz Quick Coupling |
| Surface Treatment | Red Powder Coating |
| Application | Water distribution, fire hose connection, fire engine supply |
3. Core Advantages
4‑way outlet design for high‑efficiency multi‑line water supply
High‑strength material, pressure‑resistant and durable
Independent valve control for each outlet, flexible operation
Good sealing performance, no leakage under high pressure
Standard coupling interface, universal compatibility
Compact structure, easy to carry and install
Suitable for emergency fire rescue and daily use
4. Application Scenarios
Fire brigades and fire engines
Municipal fire engineering
Industrial plants and warehouses
High‑rise buildings and commercial complexes
Emergency rescue and disaster relief sites
