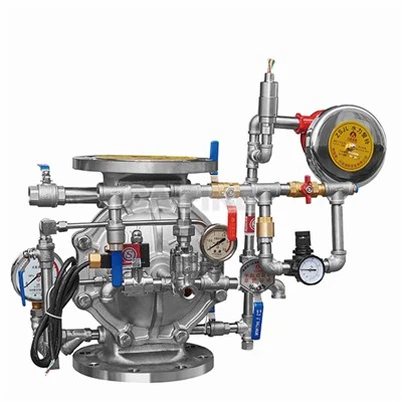

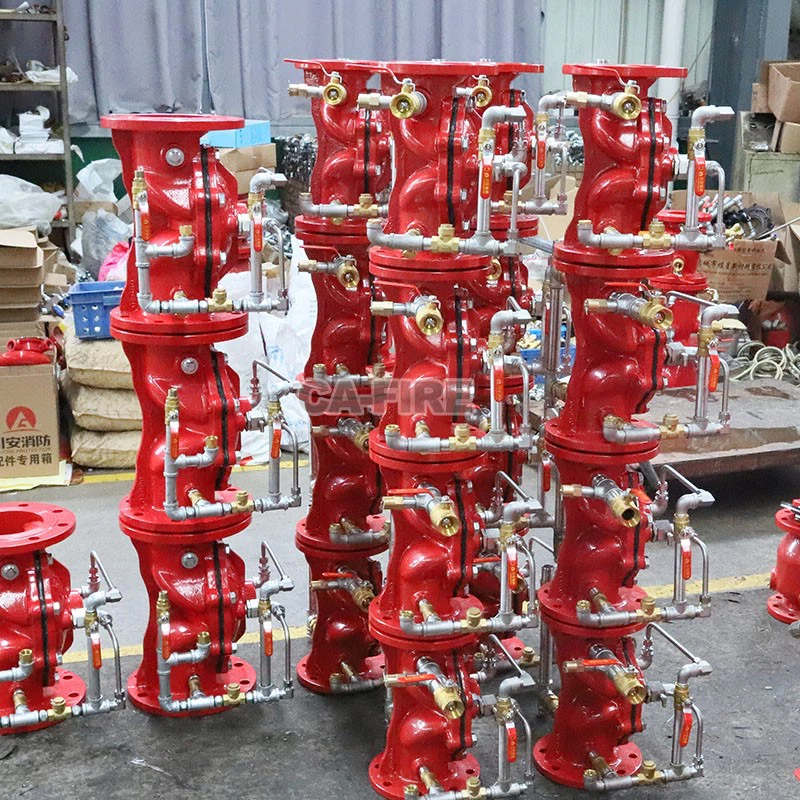

Diaphragm For Deluge Valve
For the diaphragm-type deluge valve, when its diaphragm is closed, the valve body splits into two parts: inlet and outlet. The inlet connects to the water supply system network, while the diaphragm cover and diaphragm, after sealing, form a pressure-controlled inner cavity. This pipeline links to the water supply pipe on the valve body's inlet side. When the pressure in the inner cavity is roughly balanced with that in the water supply pipe, the diaphragm stays sealed (namely, in a servo state). At this point, the water supply system is effectively separated from the system side. When the deluge valve is activated and pressure in the diaphragm control chamber falls, the diaphragm automatically opens to allow water supply.
Description
Ca-Fire Protection Co.,Ltd is one of the most credible manufacturers and suppliers of diaphragm for deluge valve in China. Welcome to wholesale custom made fire equipment products at competitive price from our factory. Contact us for more cheap products.
Products Description

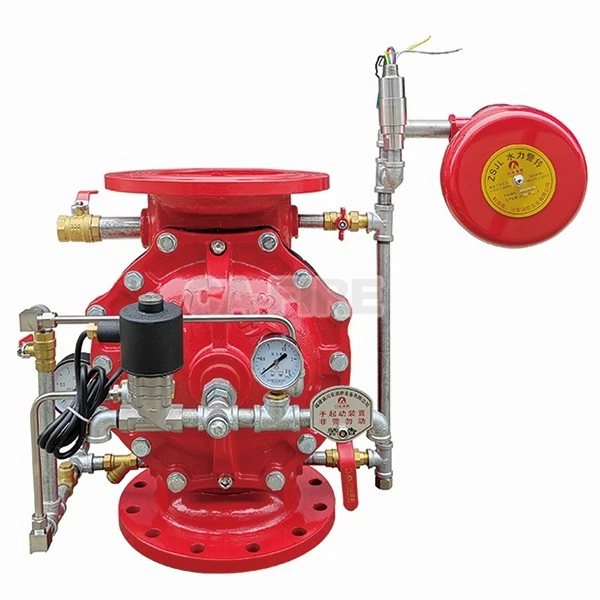

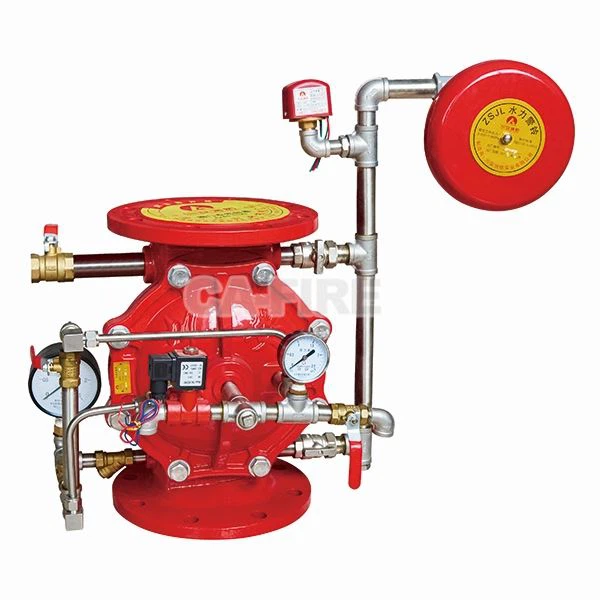

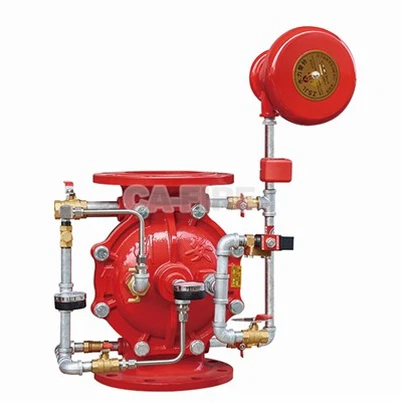

Diaphragm For Deluge Valve
For the diaphragm-type deluge valve, when its diaphragm is closed, the valve body splits into two parts: inlet and outlet. The inlet connects to the water supply system network, while the diaphragm cover and diaphragm, after sealing, form a pressure-controlled inner cavity. This pipeline links to the water supply pipe on the valve body's inlet side. When the pressure in the inner cavity is roughly balanced with that in the water supply pipe, the diaphragm stays sealed (namely, in a servo state). At this point, the water supply system is effectively separated from the system side. When the deluge valve is activated and pressure in the diaphragm control chamber falls, the diaphragm automatically opens to allow water supply.

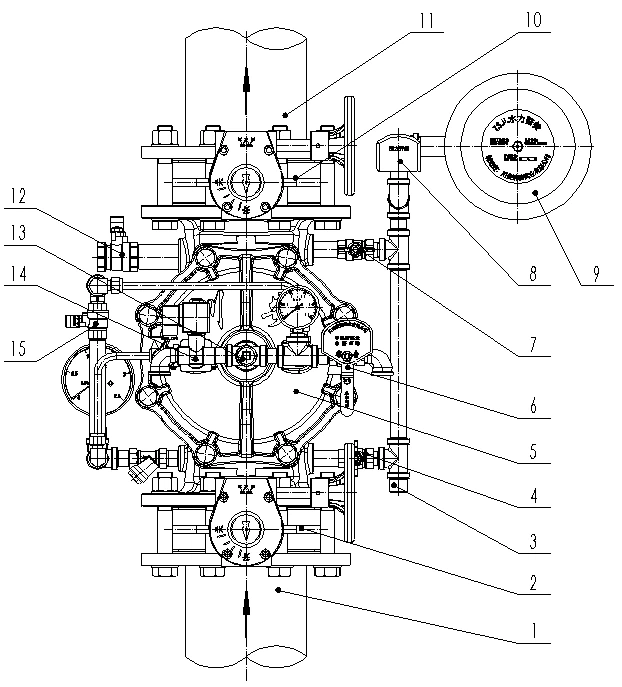

Structure and Composition
| 1). Water supply side |
|
| 2). Signal butterfly valve (normally open) | |
| 3). Automatic drain valve | |
| 4). Alarm bell test valve (normally closed) | |
| 5). Valve group | |
| 6). Manual start valve (normally closed) | |
| 7). Alarm ball valve (normally open) | |
| 8). Pressure switch | |
| 9). Water alarm bell | |
| 10). Signal butterfly valve (normally open) | |
| 11). System side | |
| 12). Drain valve (normally closed) | |
| 13). Closed, pneumatically activated prefabricated joints | |
| 14). Solenoid valve | |
| 15). Reset valve (normally closed) |
Manual debugging
Before debugging the deluge valve group, first check if all components are fully assembled. Close all valves except parts 6, 7, and 15 → inject pressure water (no less than 0.14Mpa) on the water supply side, then slowly open the inlet signal butterfly valve 2 → pressurized water flows into the valve group, triggering the part 9 hydraulic alarm (briefly), part 8 pressure switch to output signals, and part 3 automatic drain valve to close.
01
When water is observed draining from the outlet of part 6 (which was opened earlier to expel cavity air), close part 6 promptly.
02
After a certain period (3s-100s), the diaphragm resets, the alarm bell stops, and the automatic drain valve opens to discharge residual water (opening part 12 can accelerate drainage).
03
Close part 15, open part 10, and debugging is complete. Once in servo state, parts 2, 7, and 10 remain fully open, with all other valves closed.
04
