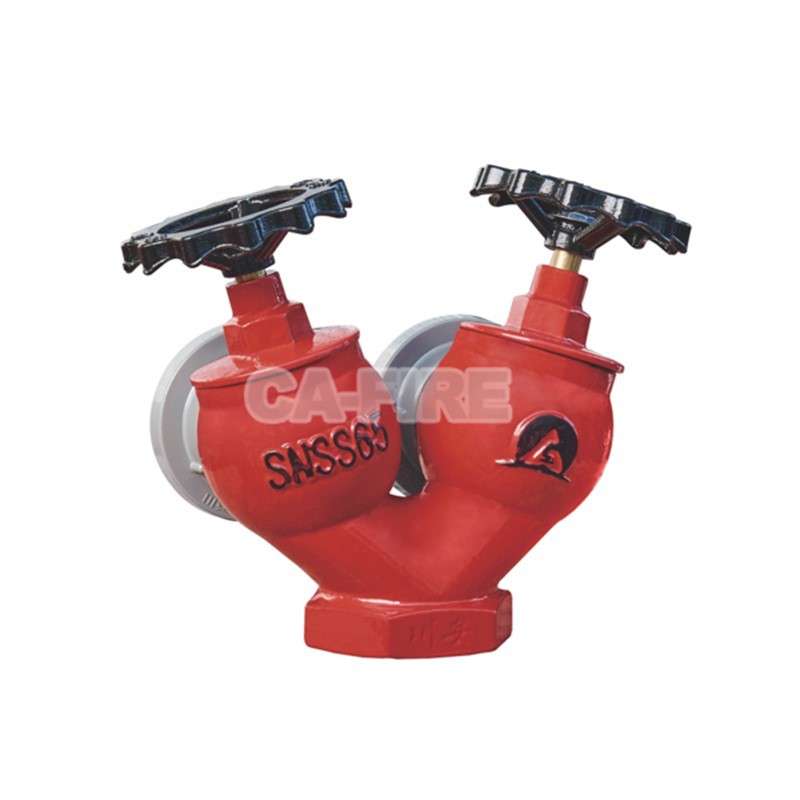

Standard Size Double Valve Double Outlet Indoor Fire Hydrant Fire Control Fitting
video
Standard Size Double Valve Double Outlet Indoor Fire Hydrant Fire Control Fitting

Standard Size Double Valve Double Outlet Indoor Fire Hydrant Fire Control Fitting

Integrated Rational Structural Layout Standard Size Double Hydrant Valve Double Outlet Our double valve double outlet indoor fire hydrant features an all-in-one optimized structural design, combining dual valve control and dual water outlet functions in one complete unit. The overall framework...

Description

Ca-Fire Protection Co.,Ltd is one of the most credible manufacturers and suppliers of standard size double valve double outlet indoor fire hydrant fire control fitting in China. Welcome to wholesale custom made fire equipment products at competitive price from our factory. Contact us for more cheap products.



Integrated Rational Structural Layout



Double Valve Double Outlet Indoor Fire Hydrant



Standard Size Double Hydrant

Valve Double Outlet

Our double valve double outlet indoor fire hydrant features an all-in-one optimized structural design, combining dual valve control and dual water outlet functions in one complete unit. The overall framework is scientifically arranged, with smooth and unobstructed internal water flow passages, effectively reducing water flow resistance during water supply. Adopting premium thickened cast iron main body as the base material, it boasts solid overall rigidity, strong compression resistance and impact resistance. The whole structure is compact and neat, free from redundant design, perfectly fitting indoor wall-mounted installation conditions, and will not produce structural displacement or loose assembly after long-term fixed use.





Superior Sealing Performance & Efficient Water Output



Fitted with high-performance imported wear-resistant sealing rings and precision machined valve core components, this fire hydrant achieves ultra-tight fitting effect at every connecting part. It completely eliminates hidden troubles such as water seepage, water leakage and air leakage under static pressure and working pressure. The unique double outlet design supports independent switch control and simultaneous water supply, which can meet the simultaneous water taking demands of multiple fire-fighting personnel in emergency situations. The water outlet is steady in pressure and sufficient in flow, capable of rapidly delivering fire-fighting water sources, greatly improving the response speed and actual fire-extinguishing efficiency in fire accidents.





Double Valve Double Outlet Indoor Fire Hydrant

Fine Manufacturing Process & Long Service Life

Every finished product undergoes strict precision casting, fine surface grinding and multiple layers of anti-corrosion and rust-proof surface treatment procedures. The surface is smooth and delicate with uniform texture, which can effectively resist erosion from humid air, dust and other indoor environmental factors, and is not prone to oxidation rust, paint peeling and aging damage even after years of standby placement. The valve switch adopts labor-saving flexible transmission design, with smooth opening and closing feel, flexible operation and no jamming. Repeated frequent opening and closing tests prove that it has stable mechanical performance and ultra-long service cycle, saving plenty of later replacement and maintenance costs for engineering projects.





Technical Specifications

Parameter

Specification

Model

SNSS65, SNJ65

Nominal Inlet Diameter

DN65 (2½") / DN80 (3")

Nominal Outlet Diameter

2 × DN65 (2½")

Nominal Working Pressure

1.6 MPa (232 psi)

Strength Test Pressure

2.4 MPa (348 psi)

Sealing Test Pressure

1.6 MPa (232 psi)

Material (Body/Valve Stem)

Ductile Cast Iron (GG25) / Lead Brass (HPb59-1)

Operating Temperature

0°C - 60°C

Applicable Medium

Clean Water, Foam Mixture Liquid

Weight (SNSS65)

2.75 kg
