Brass Indoor Fire Hydrant
This German brass indoor fire hydrant is a terminal fire extinguishing device that conforms to the German fire interface standard. The main body is cast from high-quality H62 brass, meeting the German DIN 14422 fire hydrant technical specifications and the basic requirements of the domestic GB 3445-2018 "Indoor Fire Hydrant". It is the core terminal tool for **initial fire suppression** in foreign-funded buildings and German standard equipment.
Description
Ca-Fire Protection Co.,Ltd is one of the most credible manufacturers and suppliers of brass indoor fire hydrant in China. Welcome to wholesale custom made fire equipment products at competitive price from our factory. Contact us for more cheap products.
Products Description

CA-FIRE Brass Indoor Fire Hydrant
This German brass indoor fire hydrant is a terminal fire extinguishing device that conforms to the German fire interface standard. The main body is cast from high-quality H62 brass, meeting the German DIN 14422 fire hydrant technical specifications and the basic requirements of the domestic GB 3445-2018 "Indoor Fire Hydrant". It is the core terminal tool for **initial fire suppression** in foreign-funded buildings and German standard equipment.
This German-style bolt is suitable for scenarios that follow German fire protection standards: such as sole proprietorship factory workshops, German-style commercial complex corridors, and foreign-invested hotel fire protection systems, etc. Installation must follow German fire protection regulations: the distance from the ground should be 1.1m ± 5mm, and the distance between the installation point and any point within the fire protection zone should not exceed 30m, ensuring that the operation can be reached quickly in the event of an initial fire.
Core Design of the Product and Fire Resistance Compatibility
From the perspective of practical fire prevention logic, the "initial fire stage" within 3-5 minutes after a fire occurs is the critical period for controlling the fire (at this time, the flame range is less than 10 square meters and the heat radiation is weak). This German-style copper plug design precisely meets this requirement:
1. **Fire Resistance of the H62 Brass Body**:
In damp environments such as basements and underground garages, ordinary cast iron fire hydrants tend to experience rust and jamming of the handwheel within 1-2 years - and if the plug body cannot be opened during a fire, it will directly miss the initial fire suppression window. This copper plug's H62 brass has passed a 1000-hour neutral salt spray test without corrosion and can maintain smooth rotation of the handwheel for a long time, ensuring that "emergency use is immediate".
2. **Firefighting Efficiency of the German-style Quick Coupling**:
Its 2" FNPT German-style snap-fit connector can compress the connection time of the fire hose to ≤ 6 seconds (50% faster than traditional threaded interfaces) - in the initial fire scene filled with smoke, every second saved can increase the probability of fire control.

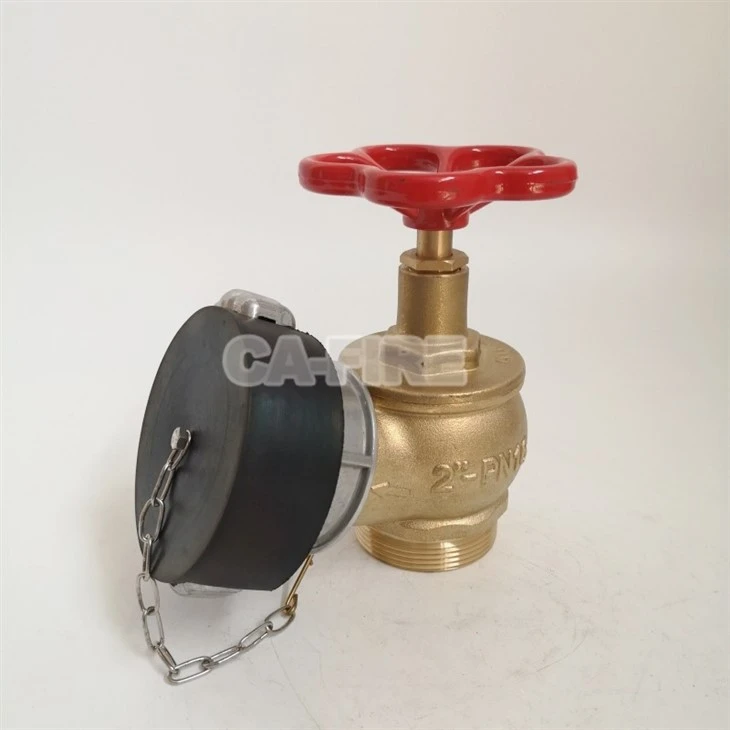

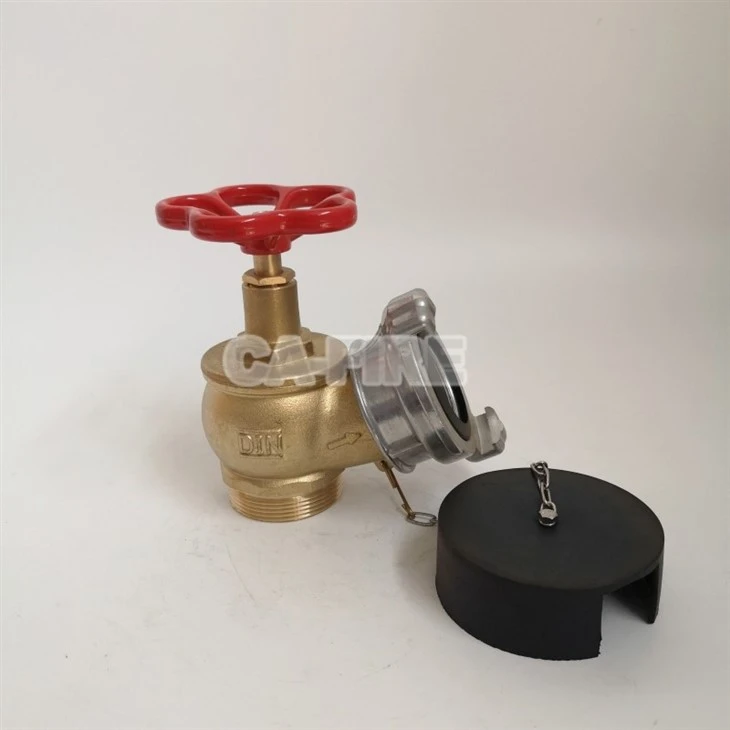

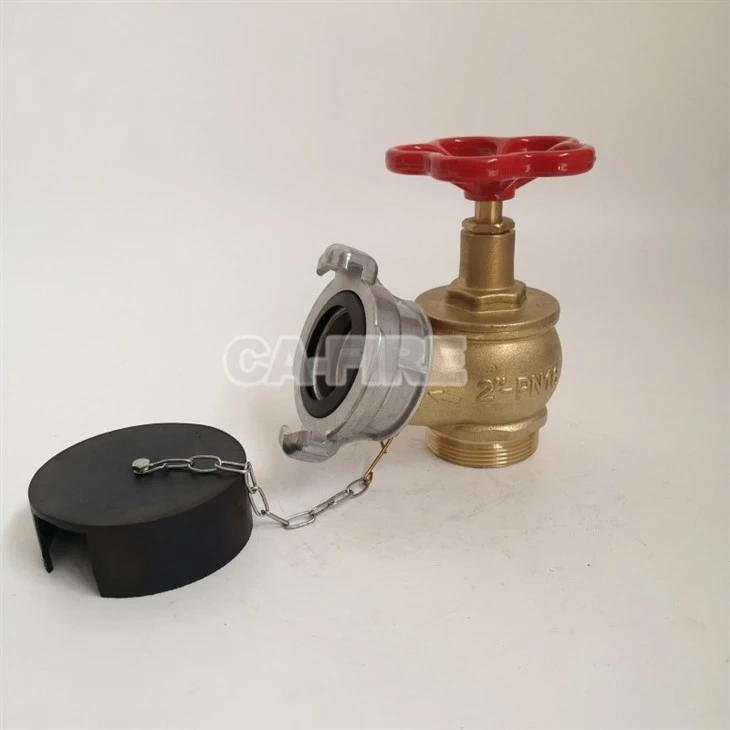

3. **Fireproof Maintenance Details with Chain-Attached Dust Cover**:
The black dust cover provided comes with a chain that connects to the plug body, which not only prevents the dust cover from being lost but also prevents dust and debris from blocking the interface (fire data shows that interface blockage can cause a 30%+ reduction in water output flow, directly weakening the suppression effect on Class A solid fires (wood, fabric)).

Key Points for Using Fire Hydrant Bodies
### 1. Key Points for Using Fire Hydrant Bodies
According to the "Code for Fire Protection Design", indoor fire hydrants need to be used in conjunction with 25mΦ65 fire hoses and 19mm water guns. The water output should be ≥ 5L/s - this flow rate is precisely capable of suppressing the flames of solid combustibles within 10㎡ during the initial fire stage through "cooling and cooling + isolation of oxygen". The red petal-shaped handwheel of this German-style copper hydrant (with anti-slip wave pattern design) can be opened with one hand even when wearing firefighting gloves, with an operating torque of ≤ 10N·m, which is suitable for rapid response in emergency situations.
### 2. The Necessity of Daily Fire Prevention Maintenance
According to "Maintenance and Management of Building Fire Facilities" (GB 25201-2010), the monthly inspection of this type of German-style copper valves should focus on three key fire prevention aspects:
- Check if the dust cover is intact (to prevent interface blockage and ensure smooth water flow);
- Rotate the handwheel to confirm smooth operation (the brass material does not require frequent lubrication, but the interface should be cleaned of accumulated dust);
- Check for any leakage in the valve body (the brass sealing performance is stable, and the leakage probability is only 1/5 of that of the cast iron valve).
FAQ
Q1: What is a French Type Brass Landing Fire Hydrant?
A: It is an indoor landing fire hydrant made of high-quality brass, designed for multi-floor buildings to provide reliable water supply for firefighting.
Q2: Where can this hydrant be installed?
A: Suitable for residential high-rises, hotels, office buildings, industrial facilities, and public buildings. Typically installed on each landing floor for quick access.
Q3: What standards does it comply with?
A: Designed to meet international fire safety standards, including FM, UL, and local building regulations.
Q4: What optional accessories are available?
A: Hose reels, fire hoses, adjustable nozzles, wall brackets, pressure gauges, valve locks, and replacement seals are available for customization.
Q5: How do I maintain the hydrant?
A: Regular inspection, cleaning, lubrication of valve parts, and checking seals and gaskets ensure long-term performance.
