3 Way Fire Hydrant

Name: China 3 Way Fire Hydrant Manufacturers Suppliers Factory - Customized 3 Way Fire Hydrant - CA-Fire Protection
Brand: CA-FIRE
SKU: 279798869

The 3 Way Fire Hydrant significantly enhances fire-fighting efficiency in complex scenarios through its multi-outlet design and flexible water flow distribution. It is particularly suitable for industrial, commercial and municipal fire protection systems.

Send Inquiry Chat Now

Description

Ca-Fire Protection Co.,Ltd is one of the most credible manufacturers and suppliers of 3 way fire hydrant in China. Welcome to wholesale custom made fire equipment products at competitive price from our factory. Contact us for more cheap products.

Products Description

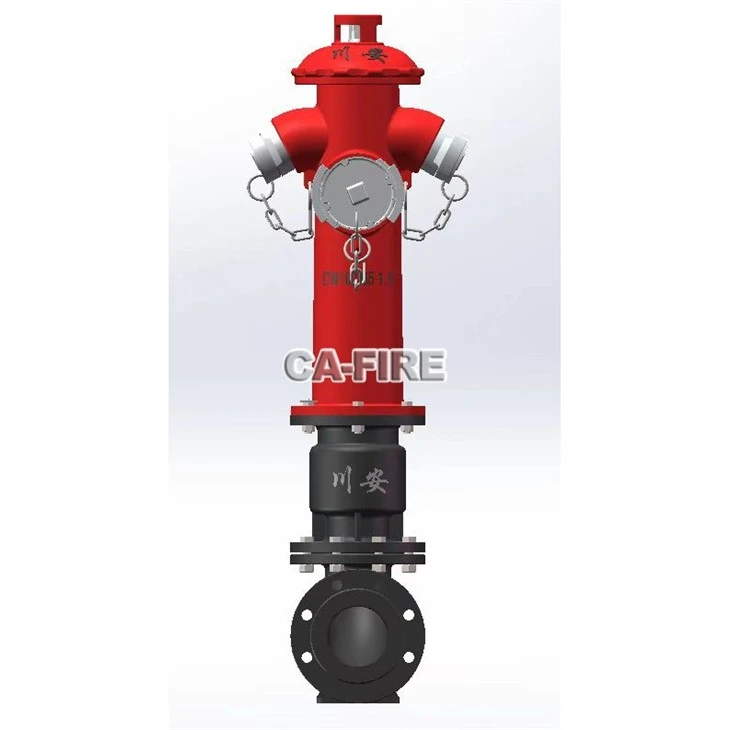

CA-FIRE 3 Way Fire Hydrant

Outlet design: At least one main outlet with a diameter of DN100 (or DN150) (for quick water intake by fire trucks) and two auxiliary outlets with a diameter of DN65 (for use with portable water hoses) are included. The interfaces should be standard internal threads (or flanges) for easy connection.
Valve disc and sealing ring: Preferably choose "copper alloy valve disc + nitrile rubber sealing ring" (copper is wear-resistant, nitrile rubber is resistant to aging and has good sealing performance). Avoid using plastic valve discs (easily deformed) or ordinary rubber rings (easily cracked).
Operational convenience: The top of the valve stem should have a clear "open / close" indication, and be equipped with a universal wrench interface (compatible with fire-fighting special wrenches) for quick operation in emergency situations.

Products Features

Where can you see the 3 Way Fire Hydrant

The performance requirements for the 3 Way Fire Hydrant vary in different scenarios.

Ordinary urban roads and residential areas

Cast iron grade ≥ QT450-10 (balance of toughness and strength), outer surface is hot-dip galvanized + powder-coated, inner surface is coated (to prevent rust)

Coastal / High-humidity areas

Additionally, add "cathodic protection" or choose the cast iron material resistant to seawater corrosion to avoid salt fog corrosion.

The extremely cold regions in the north (-10℃ or below)

It is necessary to be equipped with an automatic drainage valve (to drain the internal water when the fire hydrant is closed to prevent freezing and cracking). The valve body can have an insulation layer added and an interface provided.

Industrial zone (acid-base environment)

The inner surface is coated with epoxy resin (resistant to chemical corrosion), and the outer surface is painted with fluorocarbon paint (resistant to acid and alkali erosion).

Products Features

Maintenance:

1. Daily inspection (once a week, focusing on appearance and functionality)
Appearance inspection: Check if the valve body is rusty or the paint has peeled off (reapply paint promptly), whether the sealing cover at the water outlet is intact (to prevent debris from entering and blocking), and if there is any leakage from the valve stem (if there is leakage, it might be due to an aging sealing ring, and replacement is necessary).
Surrounding environment: Ensure that there are no obstructions within 1.5 meters around the fire hydrant (such as debris, vehicles, or plants), the ground is free of water accumulation (to avoid soaking the valve body), and the signboards (such as the word "Fire Hydrant") are clearly visible.
